Real-Time, High-Resolution Stereo Vision for Industrial Robotics
Q&A with Freya Ma, Product Manager | Teledyne IIS
Tell us about yourself and your role with Teledyne.
Thank you for the opportunity to share my insights with Robotics Tomorrow. My background, blending Automation Engineering with an MBA in automotive and machine vision industries, gives me a unique perspective on the challenges and opportunities in robotics. I'm Freya Ma, a Product Manager at Teledyne IIS, and I'm passionate about the transformative power of machine vision in creating the next generation of intelligent robots. At Teledyne IIS, I focus on empowering robots with enhanced perception and decision-making capabilities by leveraging depth sensing and advanced 3D vision technologies.
What are the biggest technical hurdles in achieving real-time, high-resolution stereo vision for industrial robotics, and how can they be mitigated through algorithm optimization and hardware acceleration?
One of the biggest hurdles with stereo vision, especially when we're talking about high-resolution images and needing real-time results, is the sheer amount of processing power required. Think of it like trying to solve a complex puzzle very quickly – you need a powerful brain to do it. Then there's the speed issue. Robots need to react instantly, so we can't have long delays while the system figures out depth. Getting those disparity maps at high frame rates is crucial. The environment also throws curveballs. Shadows, reflections, and things like shiny metal surfaces or clear objects can really mess with depth perception. It's like trying to see clearly through a foggy window. And the final piece of the puzzle is that many robots rely on smaller, embedded computers. These are powerful, but they still have limits. Trying to squeeze all that heavy-duty image processing into a system with limited resources is a real technical challenge.
How do we tackle these challenges? It's a mix of clever software and specialized hardware. On the software side, we're moving beyond older, computationally heavy algorithms. Think of it as finding smarter ways to solve that puzzle I mentioned earlier. Techniques like semi-global matching and deep learning-based methods are much more efficient at estimating depth. We also need to be smart about how we process the images themselves. Things like edge-preserving filters help reduce noise without blurring important details.
But software alone isn’t always enough to tackle the demands of real-time stereo vision. That’s where smart hardware solutions come into play. Think of it as having a specialist to take care of the heavy lifting so you can focus on the big picture. For instance, stereo cameras with onboard processing are designed to handle the complex stereo matching directly on the device. This means customers can save significant GPU/CPU resources and use them for more advanced tasks, like AI-driven decision-making or optimizing robotic workflows.
In the context of embedded systems used in robotics, what are the most effective strategies for balancing computational load with real-time performance, and how can hardware acceleration (e.g., GPUs, FPGAs) help achieve this?
Balancing real-time performance with the computational demands of vision is a constant juggling act in robotics. Robots need to see and react quickly, which means processing sensor data efficiently, especially when it comes to vision. It's like trying to think clearly and make quick decisions under pressure. One key strategy is to use smart algorithms – think of it as finding clever shortcuts to solve the problem faster. Instead of brute-force calculations, we use techniques that are optimized for speed and efficiency.
Software optimization is also crucial. We need to fine-tune our code to eliminate bottlenecks and make sure it runs as smoothly as possible. Think of it as oiling the gears of a machine. And if the system has multiple processors, we can divide the work between them, like having a team of experts working together.

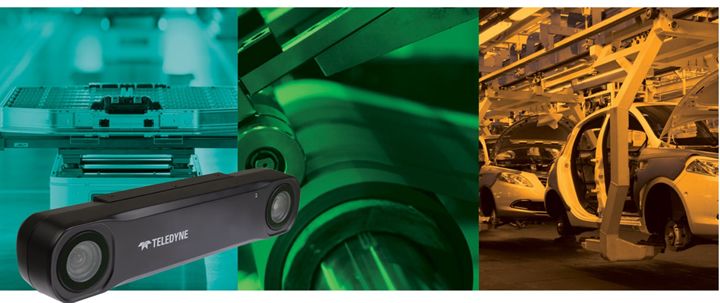

But sometimes, software alone isn't enough. That's where specialized hardware comes in. It's like bringing in the specialists to tackle the toughest parts of the job. GPUs are great at parallel processing – they can handle tons of calculations at once, which is perfect for image processing. But they can also be power-hungry. That's where devices like Bumblebee X from Teledyne IIS, with its FPGA-based onboard processing, really shine. Think of FPGAs as highly customizable chips. They can be programmed to handle specific tasks incredibly efficiently, like having a dedicated chip designed just for stereo vision.
Bumblebee X takes advantage of this by offloading the heavy lifting of stereo matching to its onboard FPGA. This frees up the main processor in the robot to handle other important tasks, like navigation or control. It's like having a dedicated assistant handling the tedious paperwork so you can focus on the big picture. This not only improves performance and reduces latency, which is crucial for real-time control, but it also simplifies integration. Developers don't have to worry about complex GPU configurations for stereo vision – Bumblebee X handles it all. It's a more streamlined and efficient approach to real-time vision in robotics.
Stereo vision systems often face difficulties in challenging lighting and environmental conditions. What noise reduction and preprocessing techniques have you found most effective in ensuring reliable depth perception for outdoor robotic applications, such as autonomous navigation or pick-and-place tasks?
One of the biggest vision challenges for robots is to go outdoors. Stereo vision, while powerful, can be quite sensitive to lighting and environmental variations. Direct sunlight, shadows, fog, rain – they all throw curveballs. So, what do we do about it? A multi-pronged approach is usually best. And one of the core strengths we leverage is the inherent robustness of passive stereo for outdoor applications.
Passive stereo makes it particularly well-suited for outdoor environments where active illumination can be affected by ambient light or create unwanted reflections. It's a huge advantage. Cameras with high dynamic range (HDR) features can capture a wider range of light intensities, which helps in scenes with strong contrasts. For noise reduction, several filtering techniques are effective. Bilateral and median filters help smooth out noise within individual image frames, cleaning up the image without blurring important details. Speckle filters are particularly useful for dealing with coherent imaging systems or situations with grainy, "salt-and-pepper" noise.
Deep learning also offers promising solutions for image enhancement and denoising. When trained properly, neural networks can be incredibly effective at removing noise and improving image quality, even in very challenging conditions. However, training these networks requires clean data and can be computationally expensive. This is an area of ongoing research and development.
Ultimately, the best approach depends on the specific application and the types of challenges you're facing. There's no one-size-fits-all solution. It's a process of experimentation and fine-tuning to find the right combination of techniques that gives you reliable depth perception for your particular robotic task, whether it's autonomous navigation or pick-and-place. But starting with the inherent advantages of passive stereo in outdoor settings gives us a strong foundation.
What are the main causes of calibration drift in stereo vision systems, and how can environmental factors like temperature changes, vibrations, and mechanical wear affect long-term accuracy in industrial settings?
Keeping a stereo vision system accurately calibrated is a constant challenge, especially in demanding industrial settings. Think of it like keeping a high-precision instrument in tune – it requires careful attention. Just like any mechanical system, repeated handling, vibrations, or even tiny structural changes in the camera housing can cause things to shift. Imagine a robot arm constantly moving – those small vibrations can add up over time and subtly misalign the cameras.
Temperature also plays a big role. Materials expand and contract with temperature changes, and even tiny shifts in the lens or sensor alignment due to heat can throw off the calibration. This is especially true in places with extreme temperature swings, like outdoor environments or factories with hot machinery. We also have to contend with the general harshness of industrial environments. Constant vibrations from robots or conveyor belts, combined with humidity, dust, and other contaminants, can all contribute to calibration drift. It's like trying to keep a delicate piece of equipment working perfectly in a construction zone.
In real-world deployments, how does calibration drift affect the performance of robotic guidance, pick-and-place accuracy, and palletization, and what best practices can manufacturers adopt to maintain long-term stability?
Calibration drift is a real enemy of precision in industrial robotics. Think of it like a musician's instrument slowly going out of tune – the performance just isn't quite right. In robotics, this can have serious consequences. Take autonomous mobile robots, for example. They rely on stereo vision to navigate and avoid obstacles. If the calibration drifts, the robot might misjudge distances, leading to inefficient routes or even collisions. Similarly, in pick-and-place applications, a robot needs to know exactly where an object is to grasp it reliably. Calibration drift can cause those picks to be off-target, slowing down the entire process. Even something like palletizing, where robots stack boxes, can be affected. Misaligned stacking due to calibration errors can lead to unstable pallets and potential safety hazards.
So, what can be done to combat this? It's a multi-pronged approach. Starting with the hardware, using rigid camera housings made from thermally stable materials is crucial. It's like building a solid foundation for your instrument. We also need to minimize vibrations and mechanical stress. Think of shock-absorbing mounts for robots and careful handling of the cameras themselves. Regular verification and recalibration are also essential, especially in harsh environments. It's like having your instrument checked and tuned regularly.
But some cameras are designed with calibration stability in mind from the start. We've heard it time and again from our customers who used older Bumblebee cameras: once calibrated, they stayed calibrated. Bumblebee X inherits that legacy. We've combined over 20 years of calibration expertise with a meticulous process and a state-of-the-art calibration infrastructure. This results in an exceptionally low RMS error and a calibration that's incredibly close to ground truth. What does this mean for our customers? It means they can rely on Bumblebee X for long-term calibration retention, minimizing downtime and maximizing productivity. They can focus on their applications, not on constantly recalibrating their cameras.
